Hekim Profil

U Profile

U Profile Section


  • H Height
  • A Upper flange height
  • B Lower flange height
  • T Thickness

u-profil

  •   (mm)
  • H 100-400
  • A 50-100
  • B 50-100
  • T 1.00-4.00

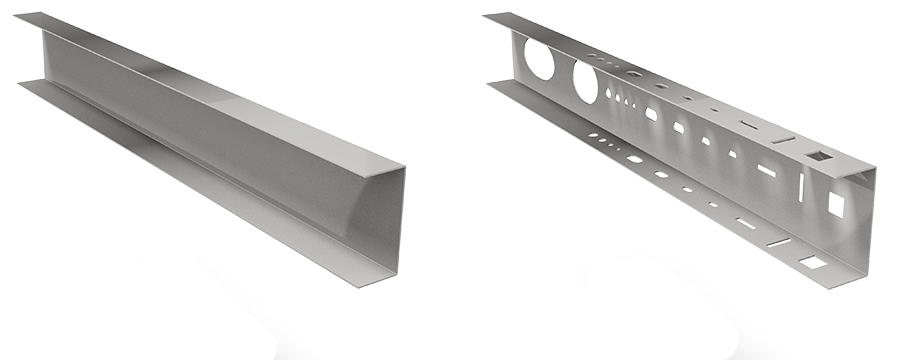

u


U Profiles are produced in the requested sizes and measures by carrying out perforation and burr-free cutting in the requested measures and axises and inkjet marking on profiles on superior technology production lines, according to the project details and with personal packaging for persons and companies. All points on the profiles can be perforated by means of 3-D drawings of profiles downloaded to our computer controlled, fully automatic and high capacity machines. They can be produced in max. length of 16000 mm, max. 4,00 mm – st52 of hardness, max. 400mm of web measurement and max. 100 mm of flange measurement.

U profile products are preferred as load bearing or auxiliary element in industrial constructions and steel buildings in construction, steel construction, light gayge steel construction, automative, electricity-electronics, metal, energy etc. sectors. The profiles are used under the name of U profile, U purlin profile, U tape profile, roof profile, facade profile, light gauge steel construction profile, steel construction profile, heavy steel building profile, perforated U profile, rolled U profile, Special production construction profile, steel building profile, prefabricated construction profile, special production U profile, prefabricated building profile, carcass profile, truss profile, steel roofing profile etc.

U profiles are used as purlin, stringcourse and facade profile in heavy steel industrial buildings exposed to excessive loads and as load-bearing column, beam and roof truss in non-industrial steel constructions such as light gauge steel constructions, warehouses, hangars and barns.

covering and mechanical options can be applied on the materials according to the designed and drawn projects. The specifications of the materials can be preferred as hard or soft according to the loads on them and the thickness of the galvanized covering may change according to the required resistance to corrosion or paint over hot-rolled sheet can be applied, if required.
U profiles provide price and material advantage upto 40% compared to constructions produced in heavy steel materials due to their very high load-bearing capacities. It also makes construction of steel buildings more reliable, fast and affordable by virtue of providing convenience in production, procurement, shipment and assembly.

U profiles are more reliable and preferred on roofs, beams or columns as they do not have breakage of parts. Steel construction systems, essential in developed countries, is the most proper construction system especially for earthquake-prone countries. Besides this, they are preferred due to the fact they are easy to carry, add-remove parts to and from, are eco-friendly and recyclable.


Inner radius in all 90°corners:min. 3.00 mm
All dimensions are accordant with TS EN 1993-1-3 standards.
Material: S390GD + Z / S350GD + Z / DX51D + Z / S235 JR / S355 JR…

U Profile Technical Details Table

  H A B T Radius ~Strip Width Weight Area Strong Axis (x-x) Weak Axis (y-y) Center of Gravity
Profile mm mm mm mm mm mm kg/m cm2 lx(cm4) Sx(cm3) rx(cm) ly(cm4) Sy(cm3) ry(cm) ex(cm) ey(cm)
U400x82x4 400 82 82 4 3 550 17,25 21,97 4511,67 225,58 14,3 107,04 15,2 2,2 1,36 0
U400x81x3,5 400 81 81 3,5 3 550 15,08 19,21 3942,24 197,11 14,3 91,21 13,1 2,18 1,32 0
U400x80x3 400 80 80 3 3 550 12,92 16,45 3374,33 168,72 14,3 76,12 11,06 2,15 1,27 0
U400x80x2,5 400 80 80 2,5 3 550 10,8 13,75 2827,71 141,39 14,32 64 9,31 2,16 1,25 0
U400x79x2 400 79 79 2 3 550 8,63 10,99 2258,99 112,95 14,32 49,85 7,34 2,13 1,21 0
U380x67x4 380 67 67 4 3 500 15,68 19,97 3549,06 186,79 13,3 59,19 10,1 1,72 1,04 0
U380x66x3,5 380 66 66 3,5 3 500 13,71 17,46 3099,76 163,15 13,3 50,11 8,68 1,69 1 0
U380x65x3 380 65 65 3 3 500 11,74 14,95 2652,04 139,58 13,3 41,53 7,29 1,66 0,96 0
U380x64x2,5 380 64 64 2,5 3 500 9,78 12,45 2205,92 116,1 13,29 33,46 5,96 1,64 0,91 0
U380x64x2 380 64 64 2 3 500 7,85 9,99 1775,7 93,46 13,32 27,07 4,83 1,64 0,89 0
U360x77x4 360 77 77 4 3 500 15,68 19,97 3350,53 186,14 12,92 87,45 13,29 2,09 1,32 0
U360x76x3,5 360 76 76 3,5 3 500 13,71 17,46 2927,46 162,64 12,92 74,4 11,45 2,06 1,28 0
U360x75x3 360 75 75 3 3 500 11,74 14,95 2505,57 139,2 12,92 61,98 9,65 2,03 1,23 0
U360x74x2,5 360 74 74 2,5 3 500 9,78 12,45 2084,87 115,83 12,92 50,19 7,92 2,01 1,19 0
U360x74x2 360 74 74 2 3 500 7,85 9,99 1678,2 93,23 12,95 40,54 6,4 2,01 1,17 0
U340x87x4 340 87 87 4 3 500 15,68 19,97 3135,18 184,42 12,5 122,32 16,85 2,47 1,64 0
U340x86x3,5 340 86 86 3,5 3 500 13,71 17,46 2740,32 161,2 12,5 104,44 14,54 2,44 1,59 0
U340x85x3 340 85 85 3 3 500 11,74 14,95 2346,27 138,02 12,51 87,34 12,29 2,41 1,54 0
U340x84x2,5 340 84 84 2,5 3 500 9,78 12,45 1953,04 114,88 12,51 71 10,1 2,39 1,5 0
U340x84x2 340 84 84 2 3 500 7,85 9,99 1572,09 92,48 12,53 57,29 8,16 2,39 1,48 0
U320x97x4 320 97 97 4 3 500 15,68 19,97 2906,21 181,64 12,03 163,85 20,74 2,86 2 0
U320x96x3,5 320 96 96 3,5 3 500 13,71 17,46 2541,13 158,82 12,04 140,32 17,93 2,83 1,95 0
U320x95x3 320 95 95 3 3 500 11,74 14,95 2176,53 136,03 12,04 117,69 15,18 2,8 1,9 0
U320x94x2,5 320 94 94 2,5 3 500 9,78 12,45 1812,43 113,28 12,05 95,96 12,5 2,77 1,85 0
U320x94x2 320 94 94 2 3 500 7,85 9,99 1458,96 91,19 12,07 77,37 10,08 2,78 1,83 0
U300x64x4 300 64 64 4 3 414 12,98 16,53 1913,27 127,55 10,73 49,49 9,04 1,73 1,13 0
U300x64x3,5 300 64 64 3,5 3 414 11,4 14,52 1686,51 112,43 10,75 43,78 8 1,73 1,11 0
U300x63x3 300 63 63 3 3 414 9,76 12,43 1443,03 96,2 10,75 36,27 6,73 1,7 1,06 0
U300x62x2,5 300 62 62 2,5 3 414 8,13 10,35 1200,37 80,02 10,75 29,2 5,5 1,68 1,01 0
U300x61x2 300 61 61 2 3 414 6,5 8,27 958,55 63,9 10,75 22,56 4,31 1,65 0,97 0
U300x60x1,5 300 60 60 1,5 3 414 4,87 6,2 717,59 47,84 10,75 16,34 3,17 1,62 0,92 0
U280x74x4 280 74 74 4 3 414 12,98 16,53 1765,04 126,07 10,3 73,81 12 2,11 1,45 0
U280x74x3,5 280 74 74 3,5 3 414 11,4 14,52 1555,86 111,13 10,33 65,21 10,61 2,11 1,43 0
U280x73x3 280 73 73 3 3 414 9,76 12,43 1331,96 95,14 10,33 54,32 8,95 2,09 1,38 0
U280x72x2,5 280 72 72 2,5 3 414 8,13 10,35 1108,57 79,18 10,33 43,97 7,34 2,06 1,33 0
U280x71x2 280 71 71 2 3 414 6,5 8,27 885,72 63,27 10,34 34,16 5,77 2,03 1,28 0
U260x84x4 260 84 84 4 3 414 12,98 16,53 1605,9 123,53 9,83 103,65 15,28 2,5 1,82 0
U260x83x3 260 83 83 3 3 414 9,76 12,43 1212,61 93,28 9,86 76,51 11,41 2,48 1,75 0
U260x82x2,5 260 82 82 2,5 3 414 8,13 10,35 1009,79 77,68 9,86 62,19 9,38 2,45 1,7 0
U260x81x2 260 81 81 2 3 414 6,5 8,27 807,24 62,1 9,87 48,51 7,4 2,42 1,64 0
U260x80x1,5 260 80 80 1,5 3 414 4,87 6,2 604,97 46,54 9,87 35,47 5,47 2,39 1,59 0
U240x87x4 240 87 87 4 3 400 12,54 15,97 1361,08 113,42 9,2 111,9 16,22 2,64 2 0
U240x86x3,5 240 86 86 3,5 3 400 10,96 13,96 1190,48 99,21 9,21 95,62 14 2,61 1,95 0
U240x85x3 240 85 85 3 3 400 9,38 11,95 1019,99 85 9,22 80,03 11,84 2,58 1,89 0
U240x84x2,5 240 84 84 2,5 3 400 7,81 9,95 849,62 70,8 9,23 65,1 9,74 2,55 1,84 0
U240x84x2 240 84 84 2 3 400 6,28 7,99 685,04 57,09 9,25 52,55 7,87 2,56 1,82 0
U240x83x1,5 240 83 83 1,5 3 400 4,7 5,99 513,55 42,8 9,25 38,47 5,82 2,53 1,77 0
U220x97x4 220 97 97 4 3 400 12,54 15,97 1202,39 109,31 8,65 147,63 19,81 3,03 2,45 0
U220x96x3,5 220 96 96 3,5 3 400 10,96 13,96 1052,33 95,67 8,66 126,53 17,14 3 2,39 0
U220x95x3 220 95 95 3 3 400 9,38 11,95 902,19 82,02 8,67 106,21 14,52 2,98 2,34 0
U220x94x2,5 220 94 94 2,5 3 400 7,81 9,95 751,97 68,36 8,68 86,67 11,96 2,95 2,28 0
U220x94x2 220 94 94 2 3 400 6,28 7,99 606,43 55,13 8,7 69,9 9,65 2,95 2,26 0
U200x94x4 200 94 94 4 3 375 11,72 14,93 941,38 94,14 7,92 131,47 18,39 2,96 2,45 0
U200x94x3,5 200 94 94 3,5 3 375 10,3 13,12 830,85 83,09 7,94 115,98 16,24 2,97 2,43 0
U200x93x3 200 93 93 3 3 375 8,82 11,23 712,5 71,25 7,95 97,33 13,76 2,94 2,38 0
U200x92x2,5 200 92 92 2,5 3 375 7,34 9,35 594,03 59,4 7,96 79,4 11,33 2,91 2,32 0
U200x91x2 200 91 91 2 3 375 5,87 7,47 475,43 47,54 7,97 62,17 8,96 2,88 2,26 0
U200x90x1,5 200 90 90 1,5 3 375 4,4 5,6 356,72 35,67 7,98 45,63 6,64 2,85 2,21 0
U180x84x4 180 84 84 4 3 333 10,47 13,33 676,46 75,16 7,1 93,24 14,58 2,64 2,2 0
U180x82x3 180 82 82 3 3 333 7,83 9,97 507,82 56,42 7,12 66,65 10,65 2,58 2,09 0
U180x81x2,5 180 81 81 2,5 3 333 6,52 8,3 423,36 47,04 7,13 54,21 8,75 2,55 2,03 0
U180x81x2 180 81 81 2 3 333 5,24 6,67 341,98 38 7,15 43,78 7,08 2,56 2,01 0
U180x80x1,5 180 80 80 1,5 3 333 3,93 5 256,59 28,51 7,16 32,04 5,24 2,53 1,96 0
U160x94x4 160 94 94 4 3 333 10,47 13,33 563,93 70,49 6,48 122,36 17,79 3,02 2,72 0
U160x93x3,5 160 93 93 3,5 3 333 9,15 11,65 494,17 61,77 6,49 104,87 15,39 2,99 2,66 0
U160x92x3 160 92 92 3 3 333 7,83 9,97 424,19 53,02 6,51 88,03 13,05 2,96 2,6 0
U160x91x2,5 160 91 91 2,5 3 333 6,52 8,3 354 44,25 6,52 71,83 10,75 2,94 2,54 0
U160x91x2 160 91 91 2 3 333 5,24 6,67 286,09 35,76 6,54 57,97 8,68 2,94 2,52 0
U160x90x1,5 160 90 90 1,5 3 333 3,93 5 214,87 26,86 6,55 42,57 6,44 2,92 2,46 0
U150x80x3 150 80 80 3 3 300 7,03 8,95 327,57 43,68 6,03 58,81 9,89 2,56 2,2 0
U150x79x2,5 150 79 79 2,5 3 300 5,85 7,45 273,3 36,44 6,04 47,82 8,13 2,53 2,15 0
U150x79x2 150 79 79 2 3 300 4,71 5,99 221,08 29,48 6,06 38,64 6,58 2,54 2,13 0
U150x78x1,5 150 78 78 1,5 3 300 3,53 4,49 166,01 22,13 6,08 28,28 4,87 2,51 2,07 0
U140x60x3 140 60 60 3 3 250 5,85 7,45 223,51 31,93 5,46 26,01 5,62 1,86 1,52 0
U140x59x2,5 140 59 59 2,5 3 250 4,87 6,2 186,29 26,61 5,47 20,96 4,59 1,83 1,46 0
U140x59x2 140 59 59 2 3 250 3,92 4,99 150,95 21,56 5,49 16,98 3,73 1,84 1,44 0
U140x58x1,5 140 58 58 1,5 3 250 2,94 3,74 113,23 16,18 5,5 12,31 2,74 1,81 1,39 0
U140x57x1 140 57 57 1 3 250 1,96 2,49 75,49 10,78 5,51 7,93 1,8 1,78 1,33 0
U120x70x3 120 70 70 3 3 250 5,85 7,45 176,71 29,45 4,85 37,89 7,39 2,25 2,03 0
U120x69x2,5 120 69 69 2,5 3 250 4,87 6,2 147,54 24,59 4,87 30,71 6,07 2,22 1,97 0
U120x69x2 120 69 69 2 3 250 3,92 4,99 119,65 19,94 4,89 24,85 4,92 2,23 1,95 0
U120x68x1,5 120 68 68 1,5 3 250 2,94 3,74 89,91 14,98 4,9 18,13 3,63 2,2 1,89 0
U120x67x1,2 120 67 67 1,2 3 250 2,34 2,98 71,67 11,94 4,9 14,03 2,85 2,17 1,84 0
U100x54x2,5 100 54 54 2,5 3 200 3,89 4,95 79,8 15,96 4 14,76 3,69 1,72 1,52 0
U100x54x2 100 54 54 2 3 200 3,14 3,99 64,91 12,98 4,02 11,98 3 1,73 1,5 0
U100x53x1,5 100 53 53 1,5 3 200 2,35 2,99 48,77 9,75 4,03 8,66 2,2 1,7 1,44 0
U100x52x1,2 100 52 52 1,2 3 200 1,87 2,38 38,83 7,77 4,04 6,64 1,72 1,67 1,39 0
U100x52x1 100 52 52 1 3 200 1,56 1,99 32,57 6,51 4,05 5,57 1,44 1,67 1,38 0
Profile mm mm mm mm mm mm kg/m cm2 lx(cm4) Sx(cm3) rx(cm) ly(cm4) Sy(cm3) ry(cm) ex(cm) ey(cm)
  H A B T Radius ~Strip Width Weight Area Strong Axis (x-x) Weak Axis (y-y) Center of Gravity

    • Different dimentions can be manufactured on demand.
    • Effective – section calculation is recommended according to load and steel class.
    • Effective inertia resistance and cross-sesction values can change according to load,steel frade,bear status
    • All calculations were made according to gravity center.
    • A,B and C cam manufacture with different dimensions.
